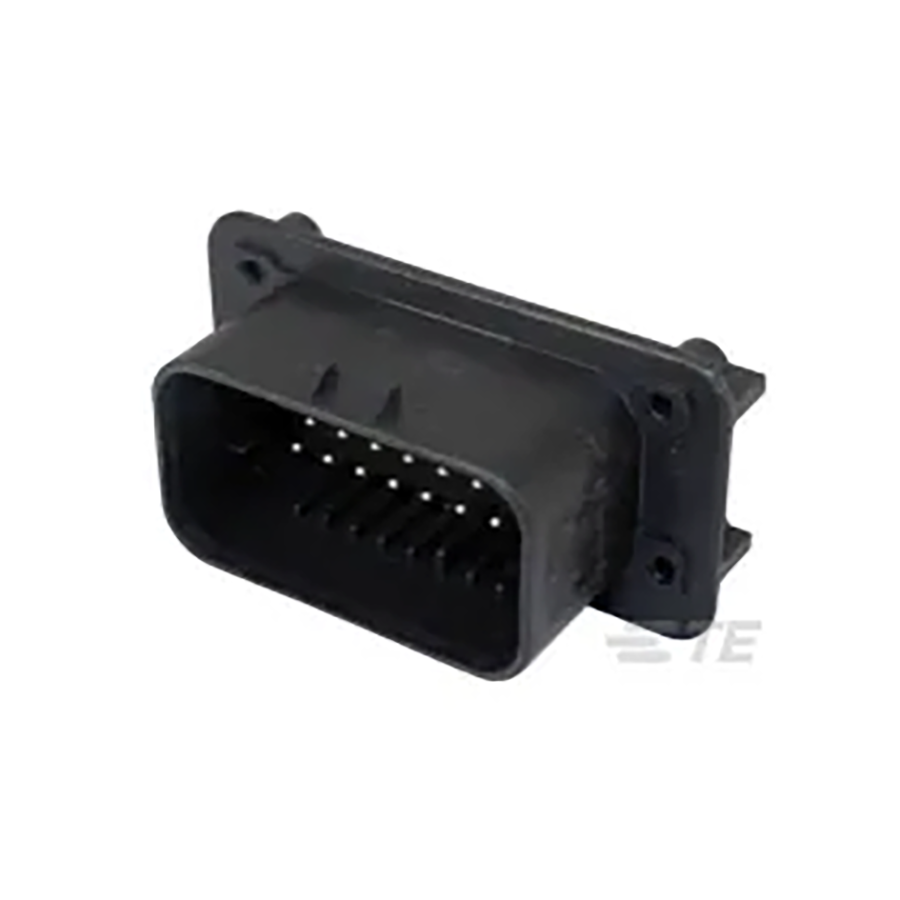

770669-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770669-1
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:23 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 60.8 mm |
| Width | 37.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 32.1 mm |
| Packaging | Bulk |
| Depth | 37.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.9878 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 23 |
| ELV | Compliant |
| Connector Type | Male Pin |
| Insulation | Insulated |
| Number of Positions | 23 |
| Number of Rows | 3 |
| Row Spacing | 3.9878 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Ramp |
| Max Voltage Rating (AC) | 250 V |
| PCB Thickness | 1.5748 mm |
| Tab Thickness | 1.3 mm |
| Number of Signal Positions | 23 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
Stock: 426
Distributors
pcbx
pcbxUnit Price$6.35213
Ext.Price$6.35213
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.35213 | $6.35213 |
| 10 | $5.36297 | $53.62970 |
| 25 | $4.68758 | $117.18950 |
| 50 | $4.32190 | $216.09500 |
| 100 | $3.98475 | $398.47500 |
| 300 | $3.67390 | $1102.17000 |
| 500 | $3.38730 | $1693.65000 |
| 1000 | $3.12306 | $3123.06000 |
